We are one of the leading trader, distributor, supplier and wholesaler of Color Coated Coil. The offered color coated coil is very widely used in the construction of pre-engineered and pre-fabricated structural frameworks. Our supplied color coated coil is specially designed from high grade raw material, to ensure longer serviceability and durability. The offered color coated coil is available at very reasonable market rates.
Features
High tearing strength
Resistive to corrosion
Low maintenance
To fulfill the needs and demands of our clients, we are engaged in offering a wide range of Color Coated Profile Sheet all over the country. This sheet is well equipped by the team of skilled professionals that works with complete commitment and loyalty to deliver excellent product. Apart from this, we are offering this Color Coated Profile Sheet in different colors.
Features
Easy to fix
Good quality
Non corrosive

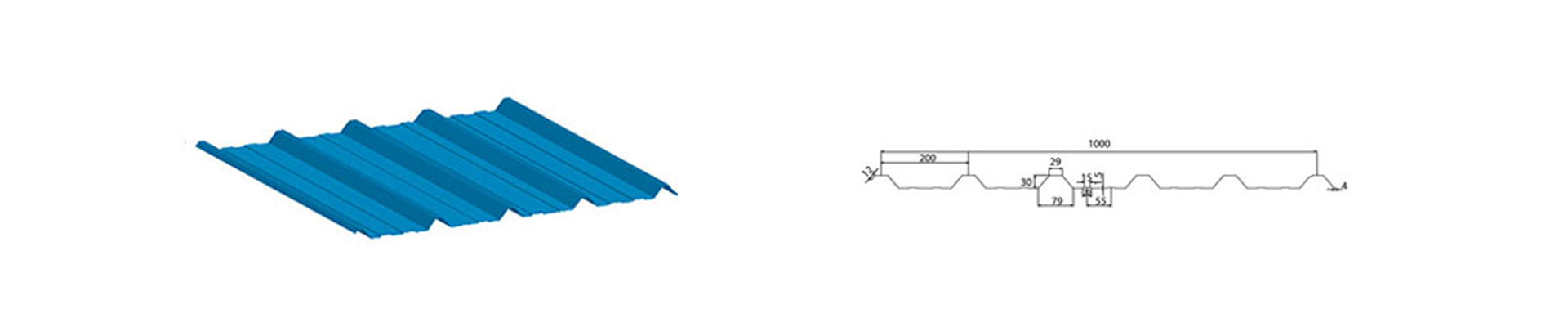

As per the requirements of our clients and demands of the market, we offer large assortment of Trapezoidal Profile Sheet that is used on roof of homes and offices. These are fabricated using qualitative basic material sourced from trustworthy and reliable vendors of the industry and advanced technology in compliance with the set quality standards. These are offered with Total Coating Thickness (TCT) of 0.30mm, 0.35mm, 0.40mm, 0.45mm, 0.47mm, 0.50mm, 0.55mm, 0.60mm and 0.65mm.
Features
Robust design
Resistant to rust
Quality approved
| Pitch | 200 ± 2 |
| Crest Depth | 30±1 |
| Cover Width | 1000 |
| Sheet Width | 1060 |
| Feeding Width | 1220 |
| Thickness | TCT 0.30 - 0.60 |
| Sheet Length | 12000 Max |
| Roof Slope | 5° Min |
| Purlin Spacing | 1000 to 1500 |
| Application | Roof/Wall Cladding |
| Input Coil Width | 1220mm(Nominal) |
| Cover Width | 1020mm(±10mm) |
| Overall Width | 1080(±20mm) |
| Small Grove Depth | 1.5mm(±1mm) |
| Pitch | 250mm(±2mm) |
| Depth | 30mm (±2mm) |
| Materials | Pre-Painted Galume(Aluminium-Zinc coated) steel Grade 240 to 550 Mpa |
| Thickness | 0.35mm to 0.80mm(Unpainted & Painted & AL-Zn Steel) Tolerance: ±0.03mm |
| Lengths | Any length from 1.0m in 50mm steps Maximum Length: 12.5m recommended due to transport limitations (0.6m for 0.35mm thickness or less) |

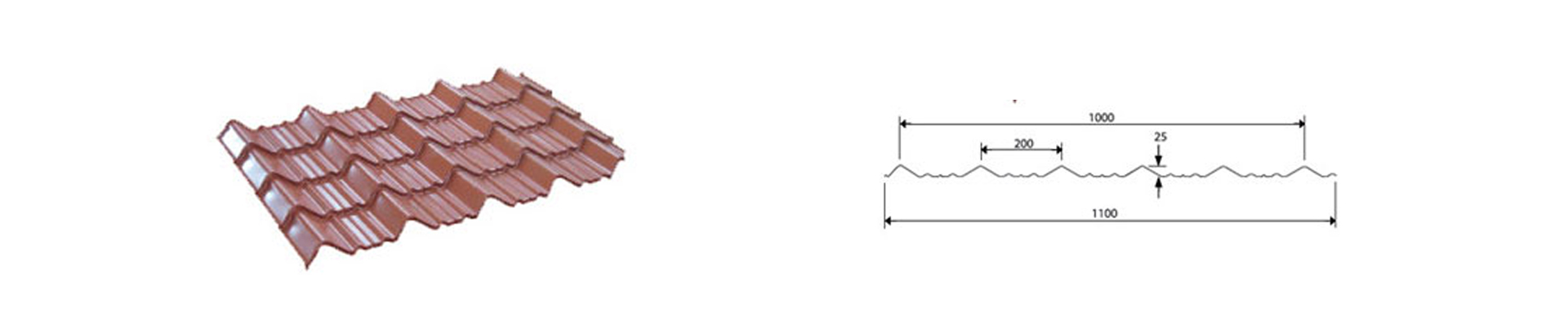

| Pitch | 200 ± 2 |
| Crest Depth | 25±1 |
| Cover Width | 1000 |
| Sheet Width | 1100 |
| Feeding Width | 1220 |
| Thickness | TCT 0.30 - 0.50 |
| Sheet Length | 4000 Max |
| Roof Slope | 20° Min |
| Purlin Spacing | Every Alternate Tile |
| Application | Roof Cladding |

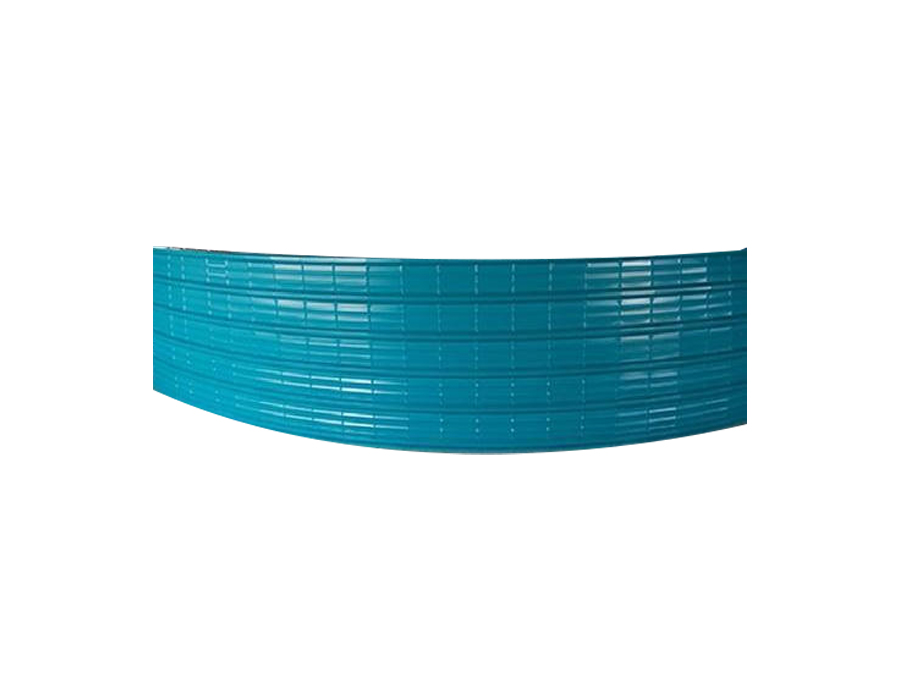

Being a well known organization, we are engaged in offering a wide range of Crimp Curved Sheet to meet the needs of our customers. This sheet is finely curved for the easy usage and better output. In addition to this, Crimp Curved Sheet is widely praised for its unmatched quality, durability, excellent finishing and reliable service.
Features
Dimensional accuracy
Resistant to corrosion
Fine finish
Keeping in mind the ever growing demands of the customers, we are concentrated in offering Color Coated PPGL Sheet. The sheets that we offer are made from the use of strong material. These sheets are made available in varied colors. The paint used in this sheet is of top quality. Our sheets have been admired for the supreme strength that they have. Besides, these Color Coated PPGL Sheets are light to carry.
Features:
Easy to maintain
Features
Easy to install
Light in weight
Easy to maintain
| Mechanical Properties | ||||
|---|---|---|---|---|
| Alloy | Temper | UTS (MPa) Min | Max | Yield Stress (0.2% proof-stress) |
| AA3003 | H18 | 200 | 240 | 180 |
| AA3105 | H18 | 195 | -- | 160 |
| AA8011 | H18 | 175 | -- | 140 |
| Chemical Compositions(%) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Alloy | Al | Cu | Mg | Si | Fe | Mn | Zn | Ti | Cr |
| AA8011 | 99.0 min | 0.20 | 0.10 | 0.6-0.95 | 0.6-0.95 | 0.10 | 0.20 | 0.20 | 0.20 |
| AA3003 | Remainder | 0.10 | 0.10 | 0.60 | 0.70 | 0.80-1.20 | 0.20 | 0.20 | -- |
| AA3105 | Remainder | 0.30 | 0.2-0.8 | 0.60 | 0.70 | 0.2-0.8 | 0.40 | 0.10 | 0.20 |
| WIDTH (MM) FOR INDUSTRIAL TROUGHED SHEET | ||
|---|---|---|
| Type | Overall | Effective |
| Ind. 6 | 795 | 750 |
| Ind. 7 | 920 | 875 |
| Ind. 8 | 1044 | 1000 |
| WIDTH (MM) FOR CIRCULAR CORRUGATED SHEET | ||
|---|---|---|
| Type | Overall | Effective |
| 10/3 | 800 | 750 |
| 12/3 | 950 | 900 |
| 16/3 | 1250 | 1200 |
We are offering our clients a wide range of Profile Ridge Sheets. This product is manufactured from high grade quality raw material in accordance with the set industrial norm suing highly sophisticated tool and machine at our well equipped production unit. We offer this sheet in different dimensions, shape and length. Further, our offered sheet is immensely applicable in textile, furniture fabrication and chemical industry.
Features
Durable
Unmatched quality
Fine finish
Color Coated Accessories are manufactured using quality-assured material and advanced technology. The range of accessories is extensively appreciated in the market for its robust construction, longer functional life and high strength. Besides being effective, these accessories are used in construction industry for purposes such as cladding and roofing. These accessories are highly demanded in the market and can easily be customized to suit the variegated needs and demands of our valued clients.
Features
High Tensile strength
Corrosion Resistant
Robust Construction
